M14 M16

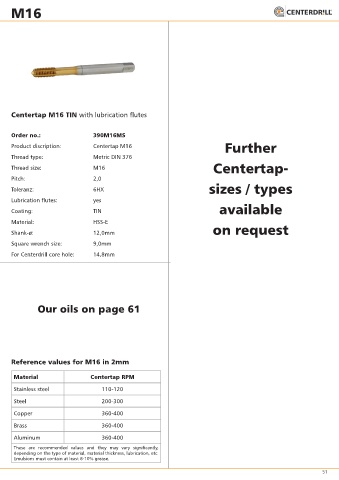

Centertap M14 TIN with lubrication flutes Centertap M16 TIN with lubrication flutes

Order no.: 390M16MS
Further
Product discription: Centertap M16

Thread type: Metric DIN 376
Centertap-
Thread size: M16
Pitch: 2,0

Toleranz: 6HX sizes / types
Lubrication flutes: yes

Coating: TIN available
Material: HSS-E
Shank-ø: 12,0mm on request

Square wrench size: 9,0mm
For Centerdrill core hole: 14,8mm

Our oils on page 61

Reference values for M14 in 2mm Reference values for M16 in 2mm

Material Centertap RPM
Stainless steel 110-120

Steel 200-300

Copper 360-400
Brass 360-400

Aluminum 360-400

These are recommended values and they may vary significantly,
depending on the type of material, material thickness, lubrication, etc.
Emulsions must contain at least 8-10% grease.
