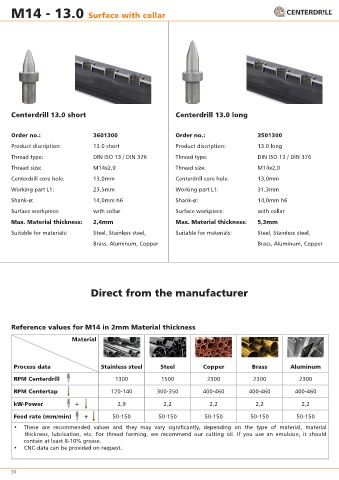

Page 30 - Centerdrill Produktkatalog 2020 English

M14 - 13.0 Surface with collar

Centerdrill 13.0 short Centerdrill 13.0 long

Order no.: 3601300 Order no.: 3501300
Product discription: 13.0 short Product discription: 13.0 long

Thread type: DIN ISO 13 / DIN 376 Thread type: DIN ISO 13 / DIN 376
Thread size: M14x2,0 Thread size: M14x2,0
Centerdrill core hole: 13,0mm Centerdrill core hole: 13,0mm

Working part L1: 23,5mm Working part L1: 31,3mm
Shank-ø: 14,0mm h6 Shank-ø: 14,0mm h6

Surface workpiece: with collar Surface workpiece: with collar
Max. Material thickness: 2,4mm Max. Material thickness: 5,3mm
Suitable for materials: Steel, Stainless steel, Suitable for materials: Steel, Stainless steel,

Brass, Aluminum, Copper Brass, Aluminum, Copper

Direct from the manufacturer

Reference values for M14 in 2mm Material thickness

Material

Process data Stainless steel Steel Copper Brass Aluminum
RPM Centerdrill 1300 1500 2300 2300 2300

RPM Centertap 120-140 300-350 400-460 400-460 400-460

kW-Power + 2,9 2,2 2,2 2,2 2,2
Feed rate (mm/min) + 50-150 50-150 50-150 50-150 50-150

• These are recommended values and they may vary significantly, depending on the type of material, material
thickness, lubrication, etc. For thread forming, we recommend our cutting oil. If you use an emulsion, it should
contain at least 8-10% grease.
• CNC-data can be provided on request.
