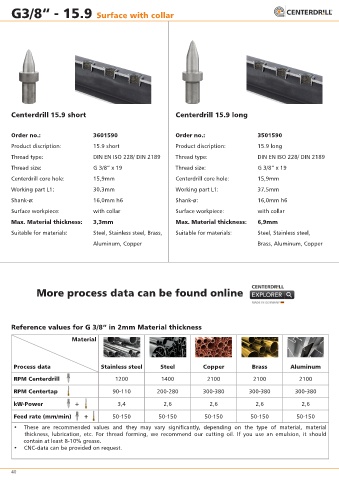

Page 40 - Centerdrill Produktkatalog 2020 English

G3/8“ - 15.9 Surface with collar

Centerdrill 15.9 short Centerdrill 15.9 long

Order no.: 3601590 Order no.: 3501590
Product discription: 15.9 short Product discription: 15.9 long

Thread type: DIN EN ISO 228/ DIN 2189 Thread type: DIN EN ISO 228/ DIN 2189
Thread size: G 3/8“ x 19 Thread size: G 3/8“ x 19
Centerdrill core hole: 15,9mm Centerdrill core hole: 15,9mm

Working part L1: 30,3mm Working part L1: 37,5mm
Shank-ø: 16,0mm h6 Shank-ø: 16,0mm h6

Surface workpiece: with collar Surface workpiece: with collar
Max. Material thickness: 3,3mm Max. Material thickness: 6,9mm
Suitable for materials: Steel, Stainless steel, Brass, Suitable for materials: Steel, Stainless steel,

Aluminum, Copper Brass, Aluminum, Copper

More process data can be found online

Reference values for G 3/8“ in 2mm Material thickness

Material

Process data Stainless steel Steel Copper Brass Aluminum
RPM Centerdrill 1200 1400 2100 2100 2100

RPM Centertap 90-110 200-280 300-380 300-380 300-380

kW-Power + 3,4 2,6 2,6 2,6 2,6
Feed rate (mm/min) + 50-150 50-150 50-150 50-150 50-150

• These are recommended values and they may vary significantly, depending on the type of material, material
thickness, lubrication, etc. For thread forming, we recommend our cutting oil. If you use an emulsion, it should
contain at least 8-10% grease.
• CNC-data can be provided on request.
