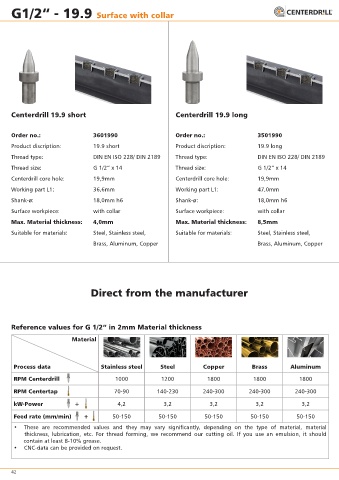

G1/2“ - 19.9 Surface with collar

Centerdrill 19.9 short Centerdrill 19.9 long

Order no.: 3601990 Order no.: 3501990
Product discription: 19.9 short Product discription: 19.9 long

Thread type: DIN EN ISO 228/ DIN 2189 Thread type: DIN EN ISO 228/ DIN 2189
Thread size: G 1/2“ x 14 Thread size: G 1/2“ x 14
Centerdrill core hole: 19,9mm Centerdrill core hole: 19,9mm

Working part L1: 36,6mm Working part L1: 47,0mm
Shank-ø: 18,0mm h6 Shank-ø: 18,0mm h6

Surface workpiece: with collar Surface workpiece: with collar
Max. Material thickness: 4,0mm Max. Material thickness: 8,5mm
Suitable for materials: Steel, Stainless steel, Suitable for materials: Steel, Stainless steel,

Brass, Aluminum, Copper Brass, Aluminum, Copper

Direct from the manufacturer

Reference values for G 1/2“ in 2mm Material thickness

Material

Process data Stainless steel Steel Copper Brass Aluminum
RPM Centerdrill 1000 1200 1800 1800 1800

RPM Centertap 70-90 140-230 240-300 240-300 240-300

kW-Power + 4,2 3,2 3,2 3,2 3,2
Feed rate (mm/min) + 50-150 50-150 50-150 50-150 50-150

• These are recommended values and they may vary significantly, depending on the type of material, material
thickness, lubrication, etc. For thread forming, we recommend our cutting oil. If you use an emulsion, it should
contain at least 8-10% grease.
• CNC-data can be provided on request.
