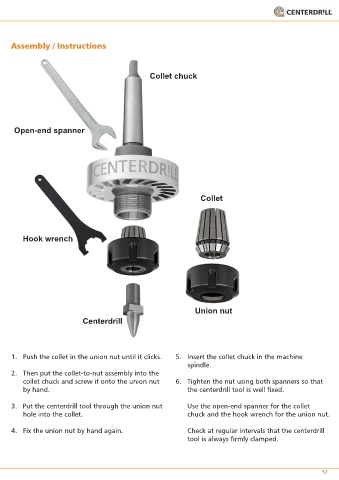

Assembly / Instructions

Collet chuck

Open-end spanner

Collet

Hook wrench

Union nut
Centerdrill

1. Push the collet in the union nut until it clicks. 5. Insert the collet chuck in the machine
spindle.
2. Then put the collet-to-nut assembly into the
collet chuck and screw it onto the union nut 6. Tighten the nut using both spanners so that
by hand. the centerdrill tool is well fixed.

3. Put the centerdrill tool through the union nut Use the open-end spanner for the collet
hole into the collet. chuck and the hook wrench for the union nut.

4. Fix the union nut by hand again. Check at regular intervals that the centerdrill
tool is always firmly clamped.
