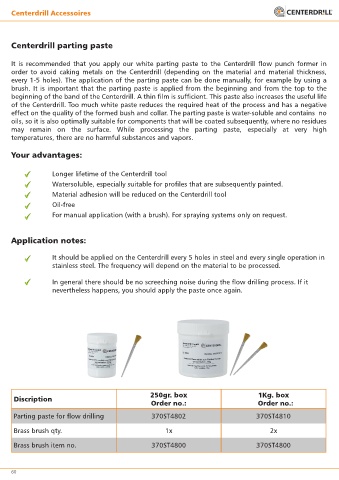

Page 60 - Centerdrill Produktkatalog 2020 English

Centerdrill Accessoires

Centerdrill parting paste

It is recommended that you apply our white parting paste to the Centerdrill flow punch former in
order to avoid caking metals on the Centerdrill (depending on the material and material thickness,
every 1-5 holes). The application of the parting paste can be done manually, for example by using a
brush. It is important that the parting paste is applied from the beginning and from the top to the
beginning of the band of the Centerdrill. A thin film is sufficient. This paste also increases the useful life
of the Centerdrill. Too much white paste reduces the required heat of the process and has a negative
effect on the quality of the formed bush and collar. The parting paste is water-soluble and contains no
oils, so it is also optimally suitable for components that will be coated subsequently, where no residues
may remain on the surface. While processing the parting paste, especially at very high
temperatures, there are no harmful substances and vapors.

Your advantages:

Longer lifetime of the Centerdrill tool
Watersoluble, especially suitable for profiles that are subsequently painted.

Material adhesion will be reduced on the Centerdrill tool
Oil-free
For manual application (with a brush). For spraying systems only on request.

Application notes:

It should be applied on the Centerdrill every 5 holes in steel and every single operation in
stainless steel. The frequency will depend on the material to be processed.

In general there should be no screeching noise during the flow drilling process. If it
nevertheless happens, you should apply the paste once again.

250gr. box 1Kg. box
Discription
Order no.: Order no.:
Parting paste for flow drilling 370ST4802 370ST4810

Brass brush qty. 1x 2x

Brass brush item no. 370ST4800 370ST4800

60
