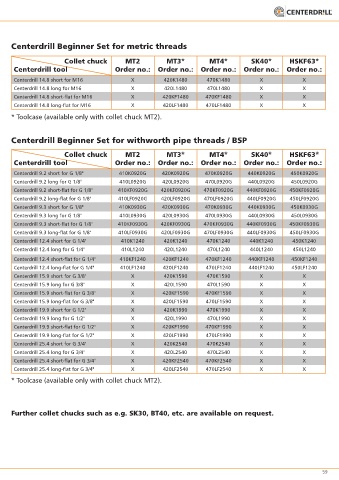

Page 59 - Centerdrill Produktkatalog 2020 English

Centerdrill Beginner Set for metric threads

Collet chuck MT2 MT3* MT4* SK40* HSKF63*
Centerdrill tool Order no.: Order no.: Order no.: Order no.: Order no.:

Centerdrill 14.8 short for M16 X 420K1480 470K1480 X X
Centerdrill 14.8 long for M16 X 420L1480 470L1480 X X
Centerdrill 14.8 short-flat for M16 X 420KF1480 470KF1480 X X
Centerdrill 14.8 long-flat for M16 X 420LF1480 470LF1480 X X

* Toolcase (available only with collet chuck MT2).

Centerdrill Beginner Set for withworth pipe threads / BSP

Collet chuck MT2 MT3* MT4* SK40* HSKF63*
Centerdrill tool Order no.: Order no.: Order no.: Order no.: Order no.:
Centerdrill 9.2 short for G 1/8" 410K0920G 420K0920G 470K0920G 440K0920G 450K0920G
Centerdrill 9.2 long for G 1/8" 410L0920G 420L0920G 470L0920G 440L0920G 450L0920G
Centerdrill 9.2 short-flat for G 1/8" 410KF0920G 420KF0920G 470KF0920G 440KF0920G 450KF0920G
Centerdrill 9.2 long-flat for G 1/8" 410LF0920G 420LF0920G 470LF0920G 440LF0920G 450LF0920G
Centerdrill 9.3 short for G 1/8" 410K0930G 420K0930G 470K0930G 440K0930G 450K0930G
Centerdrill 9.3 long for G 1/8" 410L0930G 420L0930G 470L0930G 440L0930G 450L0930G
Centerdrill 9.3 short-flat for G 1/8" 410KF0930G 420KF0930G 470KF0930G 440KF0930G 450KF0930G
Centerdrill 9.3 long-flat for G 1/8" 410LF0930G 420LF0930G 470LF0930G 440LF0930G 450LF0930G
Centerdrill 12.4 short for G 1/4" 410K1240 420K1240 470K1240 440K1240 450K1240
Centerdrill 12.4 long for G 1/4" 410L1240 420L1240 470L1240 440L1240 450L1240
Centerdrill 12.4 short-flat for G 1/4" 410KF1240 420KF1240 470KF1240 440KF1240 450KF1240
Centerdrill 12.4 long-flat for G 1/4" 410LF1240 420LF1240 470LF1240 440LF1240 450LF1240
Centerdrill 15.9 short for G 3/8" X 420K1590 470K1590 X X
Centerdrill 15.9 long for G 3/8" X 420L1590 470L1590 X X
Centerdrill 15.9 short-flat for G 3/8" X 420KF1590 470KF1590 X X
Centerdrill 15.9 long-flat for G 3/8" X 420LF1590 470LF1590 X X
Centerdrill 19.9 short for G 1/2" X 420K1990 470K1990 X X
Centerdrill 19.9 long for G 1/2" X 420L1990 470L1990 X X
Centerdrill 19.9 short-flat for G 1/2" X 420KF1990 470KF1990 X X
Centerdrill 19.9 long-flat for G 1/2" X 420LF1990 470LF1990 X X
Centerdrill 25.4 short for G 3/4" X 420K2540 470K2540 X X
Centerdrill 25.4 long for G 3/4" X 420L2540 470L2540 X X
Centerdrill 25.4 short-flat for G 3/4" X 420KF2540 470KF2540 X X
Centerdrill 25.4 long-flat for G 3/4" X 420LF2540 470LF2540 X X
* Toolcase (available only with collet chuck MT2).

Further collet chucks such as e.g. SK30, BT40, etc. are available on request.

59
