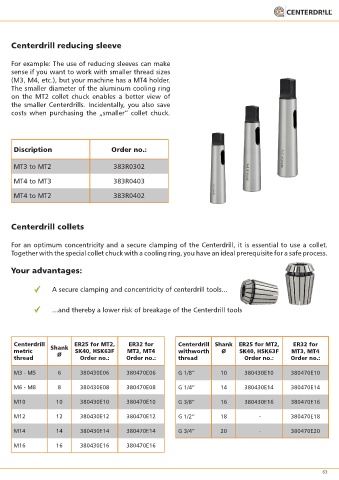

Page 63 - Centerdrill Produktkatalog 2020 English

Centerdrill reducing sleeve

For example: The use of reducing sleeves can make
sense if you want to work with smaller thread sizes
(M3, M4, etc.), but your machine has a MT4 holder.
The smaller diameter of the aluminum cooling ring
on the MT2 collet chuck enables a better view of
the smaller Centerdrills. Incidentally, you also save
costs when purchasing the „smaller“ collet chuck.

Discription Order no.:

MT3 to MT2 383R0302

MT4 to MT3 383R0403

MT4 to MT2 383R0402

Centerdrill collets

For an optimum concentricity and a secure clamping of the Centerdrill, it is essential to use a collet.
Together with the special collet chuck with a cooling ring, you have an ideal prerequisite for a safe process.

Your advantages:

A secure clamping and concentricity of centerdrill tools...

...and thereby a lower risk of breakage of the Centerdrill tools

Centerdrill Shank ER25 for MT2, ER32 for Centerdrill Shank ER25 for MT2, ER32 for
metric Ø SK40, HSK63F MT3, MT4 withworth Ø SK40, HSK63F MT3, MT4
thread Order no.: Order no.: thread Order no.: Order no.:

M3 - M5 6 380430E06 380470E06 G 1/8“ 10 380430E10 380470E10

M6 - M8 8 380430E08 380470E08 G 1/4“ 14 380430E14 380470E14

M10 10 380430E10 380470E10 G 3/8“ 16 380430E16 380470E16

M12 12 380430E12 380470E12 G 1/2“ 18 - 380470E18

M14 14 380430E14 380470E14 G 3/4“ 20 - 380470E20

M16 16 380430E16 380470E16
